As with many of my ideas this started elsewhere. We were planning a couple of trips and would want the bikes on the bike rack so would not be able to use our external box so I started looking for roofboxes this was pretty hard as there didn’t seem to be anything cropping up second hand.
I guess this is the type of thing you buy and leave in the shed or garage all year and just use it a few times. I was specifically looking for something big enough for snowboard in winter and hopefully big enough for my surfboard too so made the search much harder, with the trips coming up I moved my search to new roof racks and roof boxes and the costs are just a bit crazy the cheapest I could find was £350 and that was not an option.
We left the bikes at home and put the storage box on the bike rack for the trip and I really started looking into the idea of fitting a hightop as it would give me the extra storage that I wanted as a bonus I would have that storage all the time. Just to make things even easier to decide, it wouldn’t cost me much more to get a hightop than the initial idea.
I made the phone call to a local Cornish company Shapes GRP and placed my order. They answered all my questions and were able to make it in time for me for a work trip down south. One of the main questions I had was whether they paint their roofs to match your colour which if that was the case I would just spray it myself but they can match the gel coat which is far better as you are not so worried about scratches or damage.

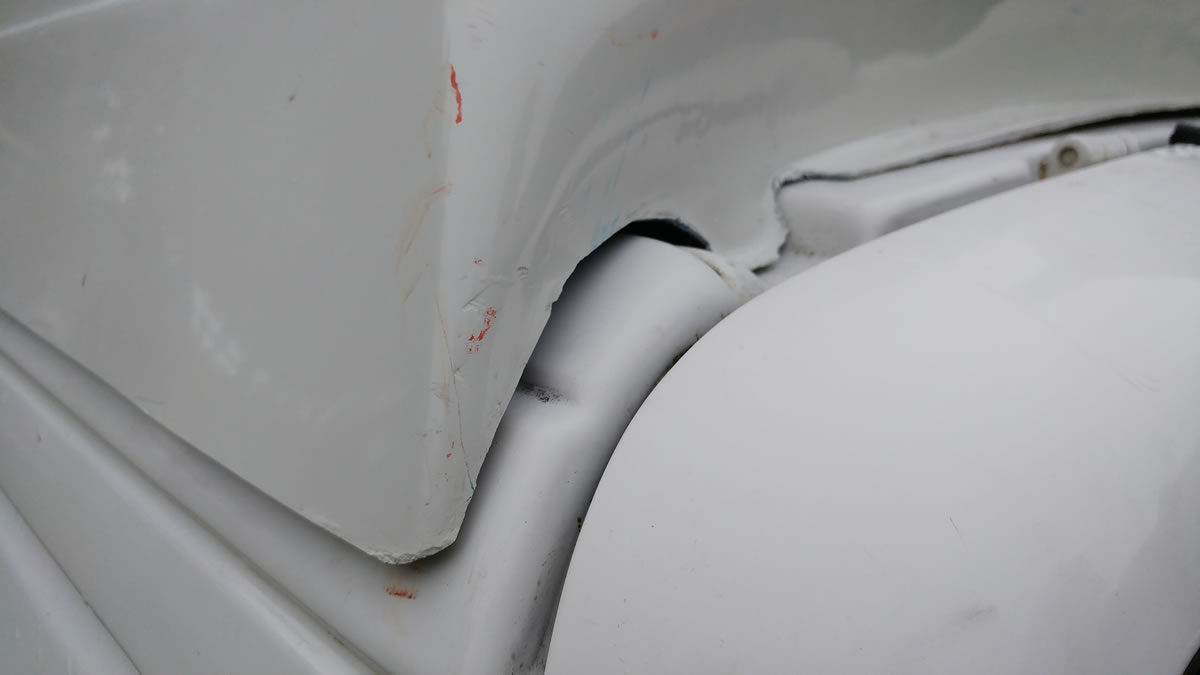

All went smoothly and the roof was delivered to my parents house ready for me to fit it. Which takes us onto the first step of trial fitting the roof, this was a bit of a scary moment as there seemed to be a slight bow the rear seemed too wide and one side had been overcut not leaving a very tidy gap.
So Step one was to improve the fit on the left rear I used some masking tape to get a rough shape of how much fibreglass I needed to add. I could then take the roof off and use some fine metal mesh cut to shape and epoxied on to give me a backing for my repair. I then used Polyester Fibreglass Filler to fill against the mesh to build back the area. I could then fit the roof mark and re-cut closer to the shape. Finished up with sanding and paint. I had left my colour matched aerosol in Scotland so had to use a Gloss white for now.
UPDATE
Shapes now use an old T4 roof so scribe this for you improving the fitment and not needing to make modifications yourself.
Now happy with the fit and happy the slight bow would disappear when attached I worked out I could use ratchet straps to pull the roof down and wood wedges to pull the sides in while the sikaflex was bonding. Onto making a hole in my brand new roof now to fit a Fiamma Roof Vent. I measured the centre of the roof and parallel a few times and also got my dad to re-check it a few times as I didn’t want to get this wrong. Once happy, four pilot holes and connect the dots with a jigsaw. The roof vent drops straight into the hole with a small seam of silicone to make sure everything is watertight. Holes were drilled through the roof as these then allowed the vent to be screwed through to a wood frame sandwiching the GRP roof. I added a dab of silicone to all screw holes as well so hopefully no leaks appear in that region. One error at this stage was the 45 degree angles on the wood frame meant the corner screws were not as secure as they could have been.
That was it the roof was ready to fit, with another lesson learnt later that this would have been a good time to insulate and carpet the roof as its pretty hard work when in situ. Now time to cut the old roof out first removing all the roof lining any old wiring looms for the interior lights and the sunroof I had fitted. I know a lot of people have problems with the roof fixing’s But I have always used an oversized torx bit which I wedge inside and can then just unscrew each one and remove.
This is where there is no turning back and time to cut the roof I have decided to remove the lot and wanted a well over 6ft bed I would need to also cut a small part out over the cab to allow room to climb into the bed. This meant taking out all the roof supports which one was saved from the scrap metal pile and extensions welded to each side so it could be riveted back in further up the van.
I had also chosen to cut the roof right to the rain gutter which is double skinned and could then be re used as the bed board support. I found the easiest way to remove the roof supports was with hand metal shears I would have loved to have used grinder or air grinder but with interior still in place didn’t want to risk it. I used air shears to begin with on the main roof panel but found with the cut I was needing in the gutter they would be no use and I moved onto a jigsaw to cut the rest out.
This wasn’t too hard as I didn’t have to mark anything out I could just follow the lines of the roof to make my cuts. With all the sharp edges I used a file to remove the sharp edges and burs, painted all bare metal and added a layer of duck tape to save me any pain moving around.
Things are certainly happening at this point and with a massive convertible it was time to get the roof on again a test fit and minor adjustments to get it sitting even all around I then used masking tape to mark where the roof would come to.
I could then lift the roof up onto long wooden slats to allow me to use sikaflex 221 to run a bead around the entire area that it would be bonded to, above the tape line. I only used 1 and a quarter tubes for this then used the remaining from the inside to fill up any areas that could use some more.
Once lowering the roof onto the sikaflex you could feel the immediate grab it had and you could walk around and just push the roof to where it needed to sit and apart from the rear it was seemingly holding itself in place from that point. As security though I added some long lengths of wood and clamps to hold the front portion in place and used the ratchet straps and wood blocks to pull the rear into place.
I couldn’t find anything clear about the sikaflex 221 apart from leave 24 to 48hours to dry. So I left the straps and clamps on for six hours which left no movement once removed and all seemed solid. I then got the services of my brother ( who is a tiler ) to finish up for me and just use a white silicone around the outside to smooth the transition between van and roof and cover the fibreglass edge. I much prefer this to the rubber trim that I see used a lot and I am sure doing it this way must give more of a bonding surface.
Next up I will write about the interior and what my plans were with that.
